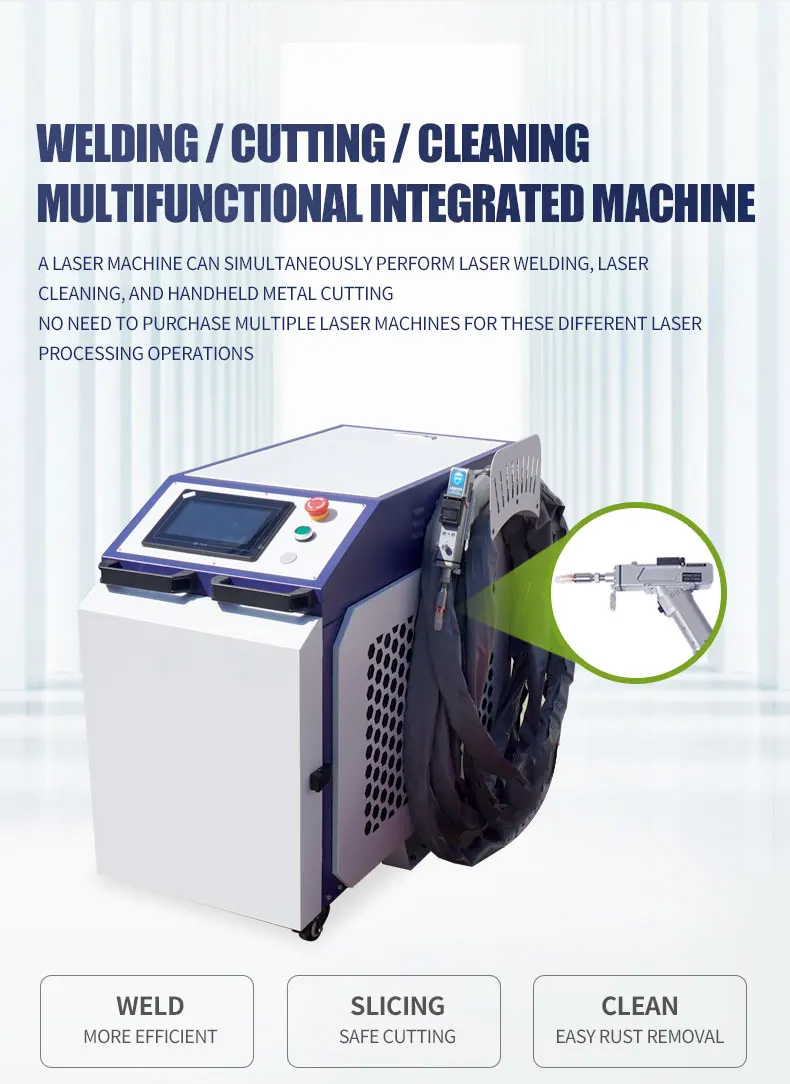

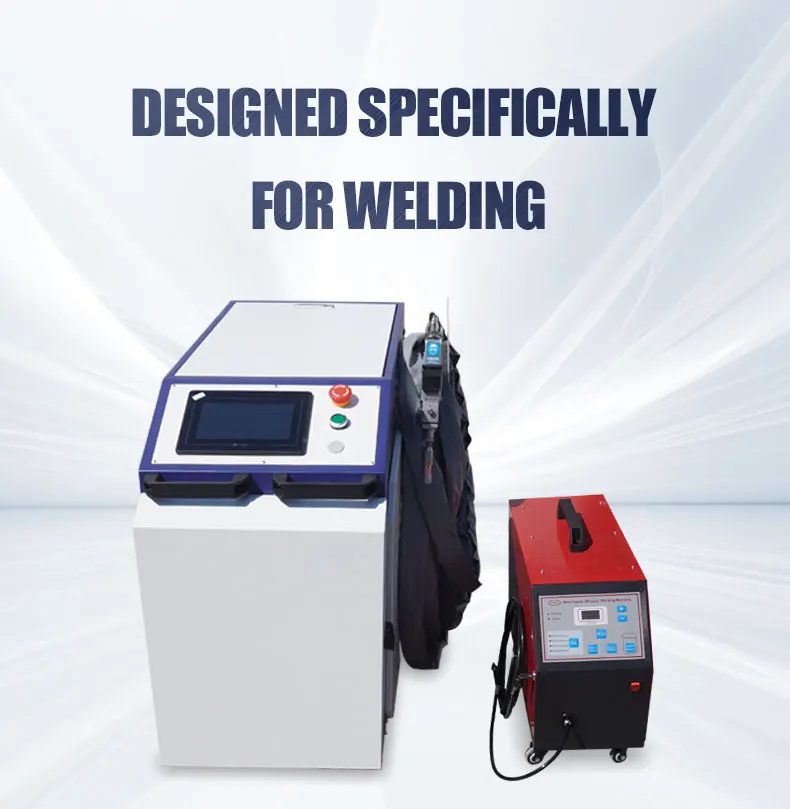

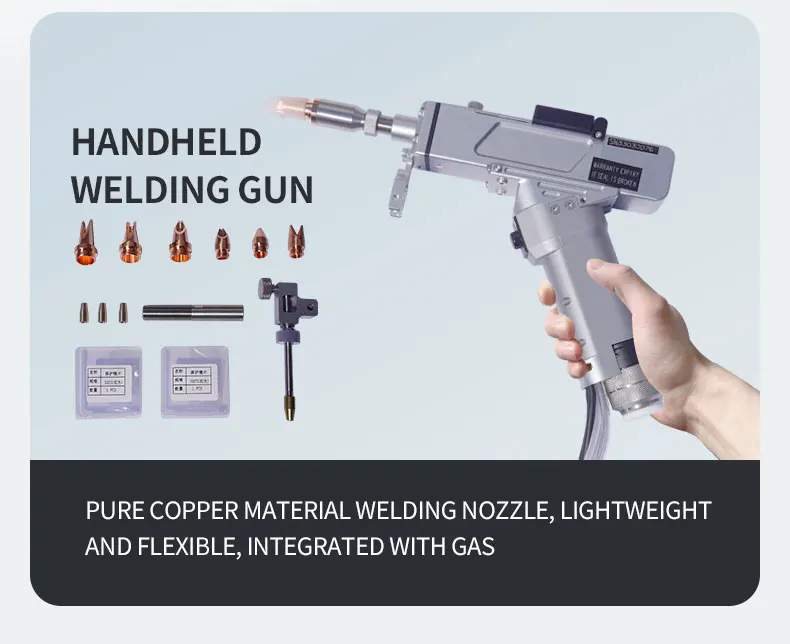

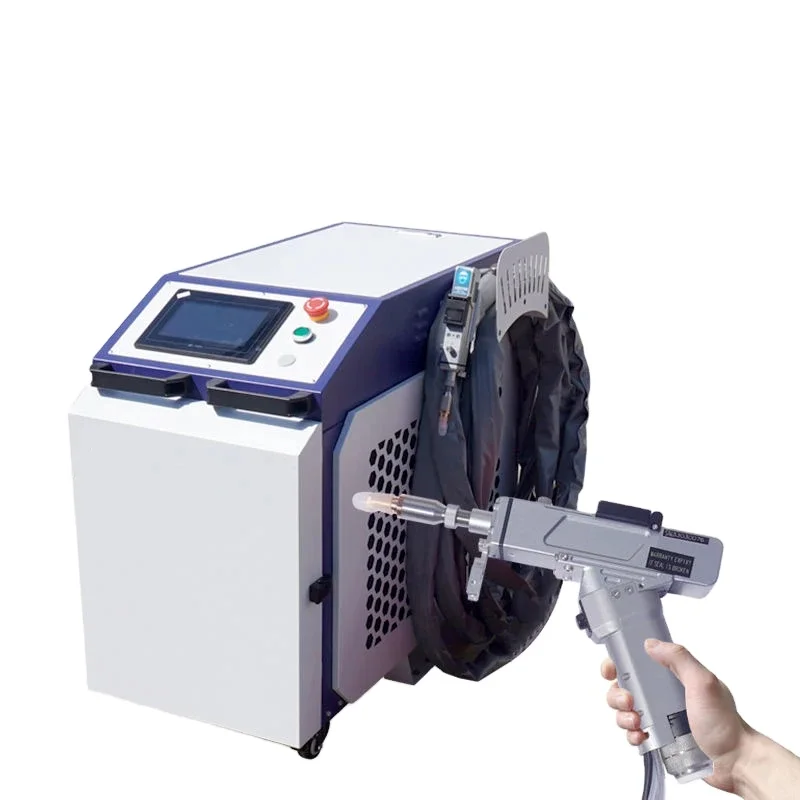

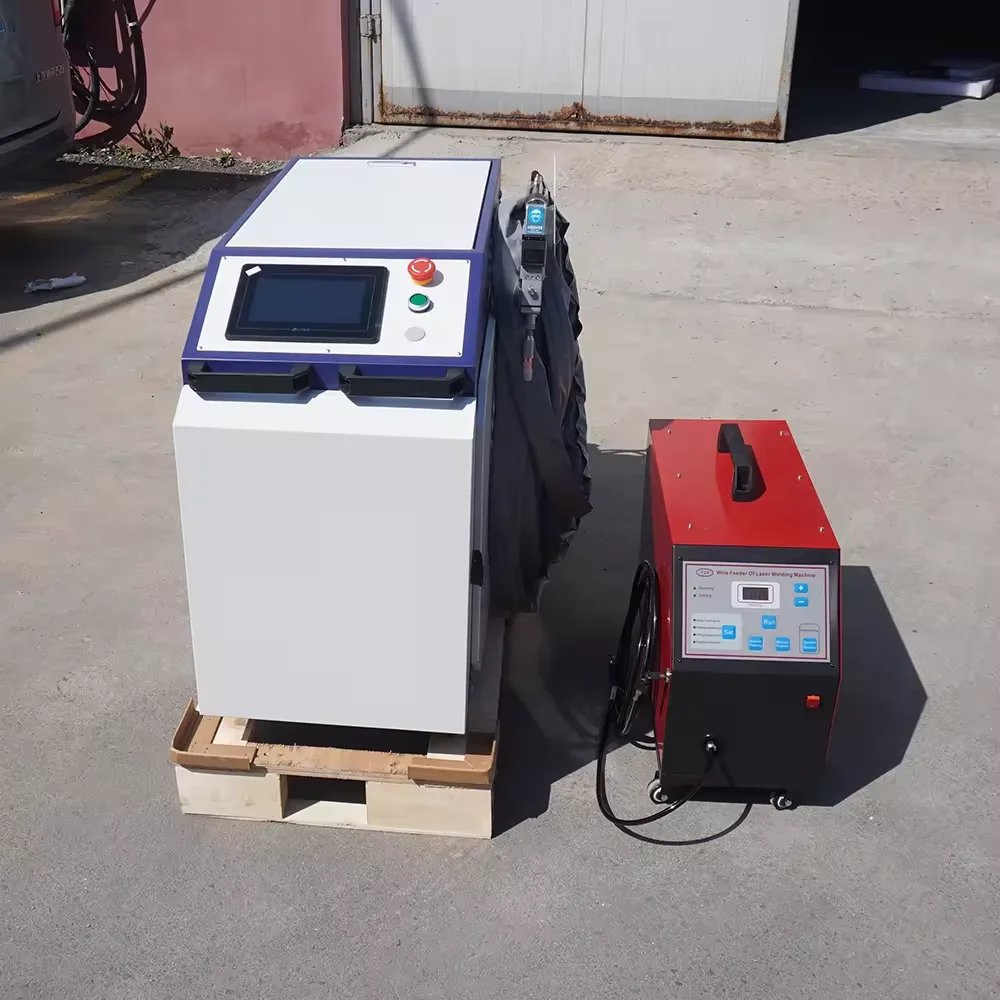

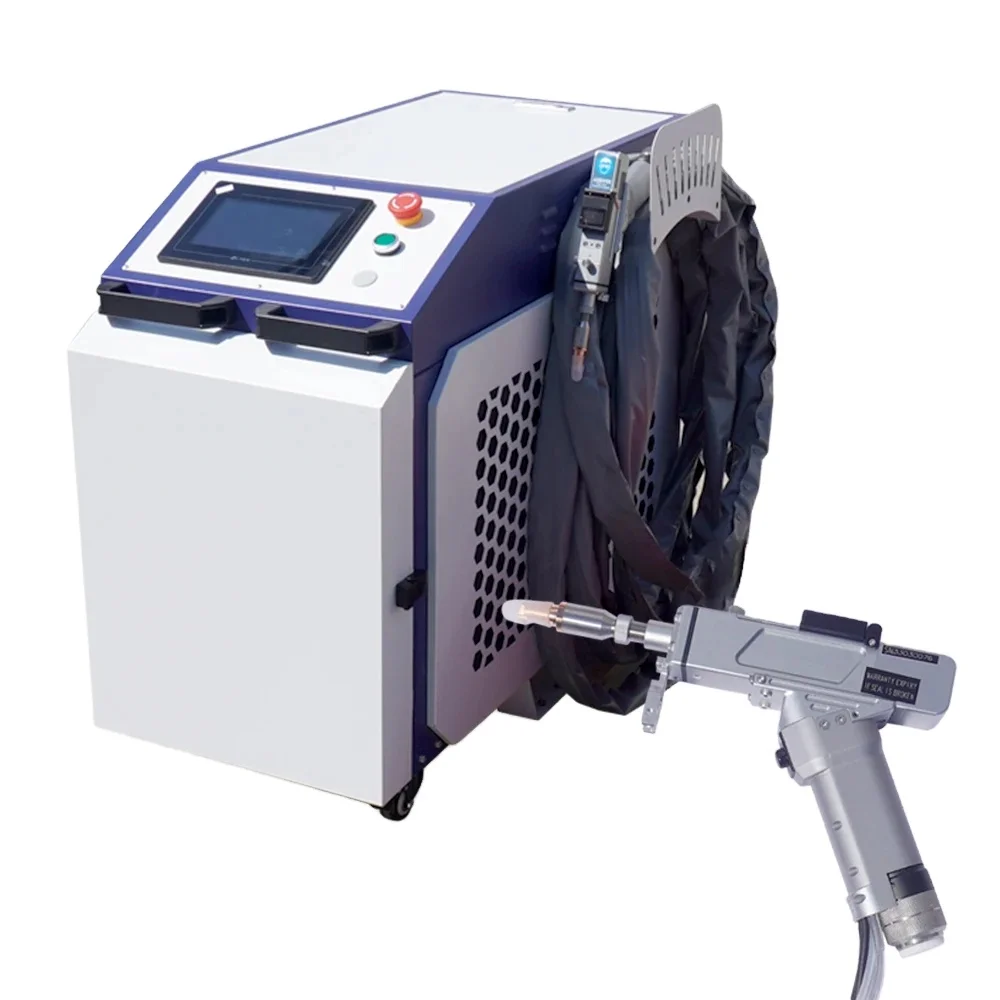

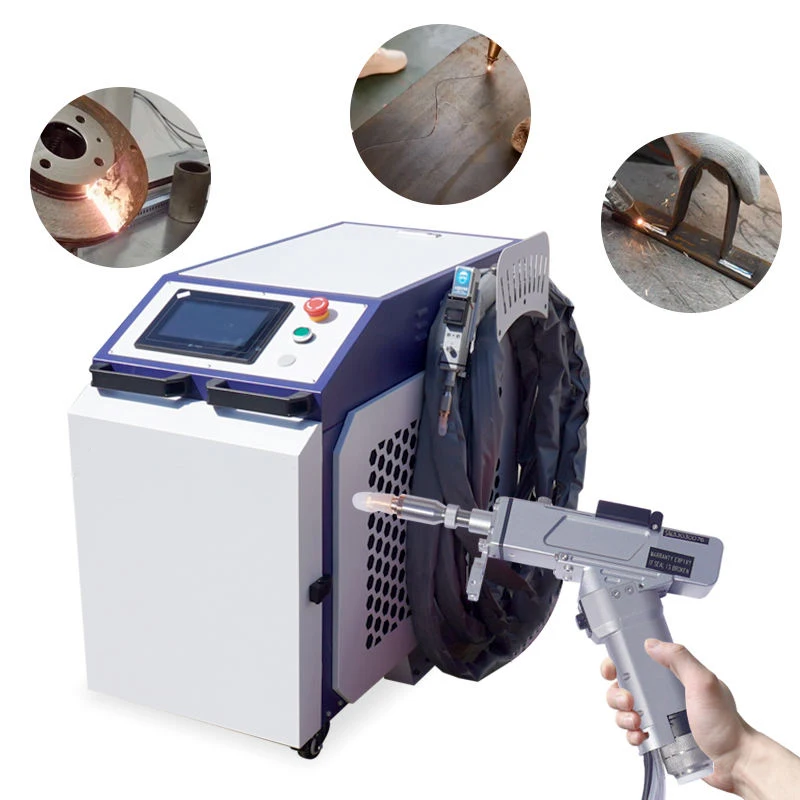

The RM-1000W portable fiber laser welding machine adopts continuous fiber laser source. It’s a fiber and metal welding machine.Adopting industrial integrated design, the structure is compact and beautiful, laser beam mode is good and can make the energy concentrate. So the laser welding machine’s performance is stable and reliable, with long lifespan consumables.The fiber laser welding machine head adopts water-cooled design, it won’t get over-heated during welding, small diameter, easy for hand-holding.
|
NAME
|
Laser Welding Machine
|
||
|
Model.No
|
RM-1000W
|
RM-1500W
|
RM-2000W
|
|
Operating Mode
|
Continuous/Modulation
|
||
|
Laser Wavelength
|
±2%
|
||
|
Power Requirements
|
220V/380V
|
||
|
Machine Power
|
≤7KW
|
≤9KW
|
≤11KW
|
|
Operating Environment Temperature Range
|
15-35℃
|
||
|
Working Environment Humidity Range
|
<70% No Condensation
|
||
|
Welding Thickness Range
|
0.5-5MM
|
||
|
Welding Line Requirements
|
≤0.5mm
|
||
|
Welding Speed
|
0-120mm/s
|
||
|
Machine Size
|
1190×1100×650mm
|
||
